FarmerHelper: FHM GKK Flail Mower

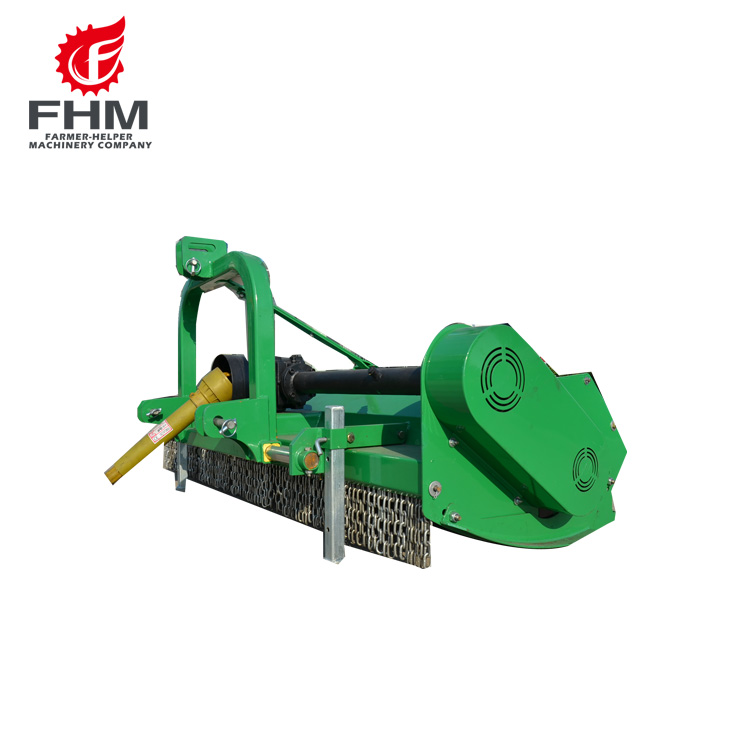

FHM GKK Flail Mower

The GKK/GKKH Flail Mower/Shredder has an adjustable offset that can be set manually or hydraulically with the optional hydraulic cylinder. for working on grass, leaves, vine , brush, pruning’s and Branches.

The GKK model is a versatile machine, suitable for mowing grass and above all shredding/mulching twigs and pruning residue. Thanks to the robust structure and oversize rear roller this mower quickly cuts up to 3” material. The machines offset can be moved sideways with a mechanical or hydraulic system (optional).

The robust structure of the GKK is suitable for commercial / professional use. Maximum application versatility on any type of residue, from open fields to orchards. Rear bonnet can be opened for maintenance purposes or to allow you to quickly cut materials that you do not need to finely chop. Allowing the mower to expel the cutting out the rear of the bonnet. This option should only be used in areas where there is not risk having material throw out the rear of the mower deck.

Shredder with adjustable offset, for working on grass, leaves, vine and olive remains. The KDK model is a versatile machine, suitable for mowing grass and above all shredding twigs and pruning residue, thanks to the robust structure and equipment.
The machine can be moved sideways with a mechanical or hydraulic system (optional).
Robust structure suitable for professional use. Maximum application versatility on any type of residue, from open fields to orchards. Rear bonnet can be opened for maintenance purposes. Standard skids screwed to the side.

Feature
• For 50-80 HP tractors (37-59 kW)
• Cast iron gearbox with free wheel
• Adjustable rear roller
• Three modes of lateral movement, manually adjustable
• Side skids
• Universal 3-point hitch Cat. I
• Rear hatch with handle for easy maintenance / replacement of knives and hammers

Universal three point hitch with mechanical offset

Cat. 1-2 hitch
Cast Iron 65 horsepower steel gears Gearbox for PTO. 540 RPM.
Free-wheel overrunning internal gearbox clutch
SKF bearings (Ø100mm) positioned in the side panels.
Integrated adjustable roller and side skid units
Electronically balanced rotor
Hot forging tool steel Shredding hammer style blades 3 1/2” wide 27 oz.
Front safety chains .
Adjustable stretcher for belt adjustment is easily accessible.
EC full width front safety guards
